• Accurate and confidential 3D designs using Solidworks software
• Single and multiple cavity tools
• Cold runner, hot sprue and hot manifold designs for plastic injection molds
• Quick-change MUD units and custom insert molds
• Face mounted tooling
• Overmold tooling
• Multiple slide actions
• Family molds
• Hand-loaded inserts for low volume applications
• Mold design checking
• Prototype design and computer rendered images for presentations
• Mechanical design and fully dimensioned 2D drawings
• Fixture design for manufacturing, machining, assembly and testing
• On-line real time design review meetings can be scheduled
• Many file conversions including STEP, Parasolid, Pro Engineer (Pro E) & Igs
• File transfers through a secure FTP site
• Competitive pricing and delivery

We serve the tri-state region of NY, PA and OH in person.  Our FTP site allows for quick tool design transfers if your company is located elsewhere in the US or Canada.

CONTACT US

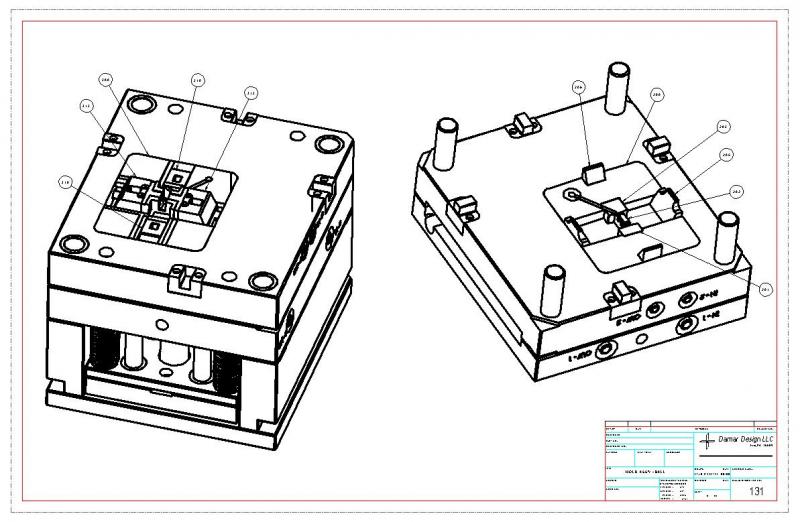

2D Drawing with ISO views


 2D Drawing with section view

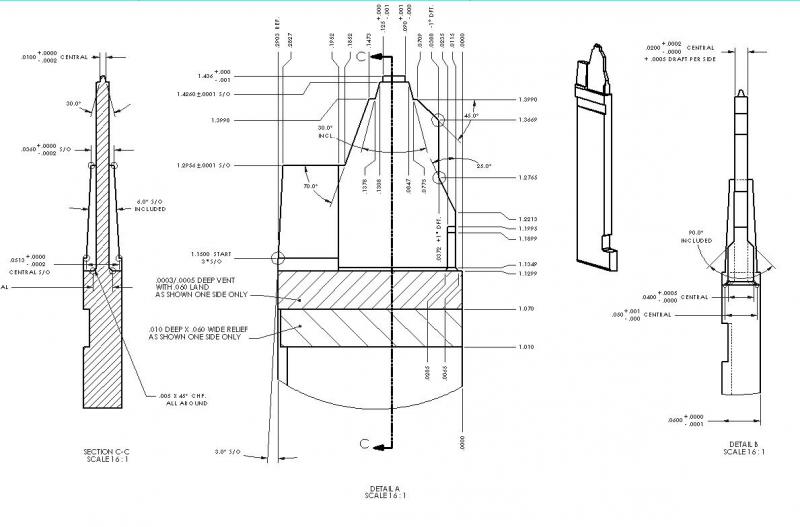

Partial detail drawing view of a core from an electronic mold
